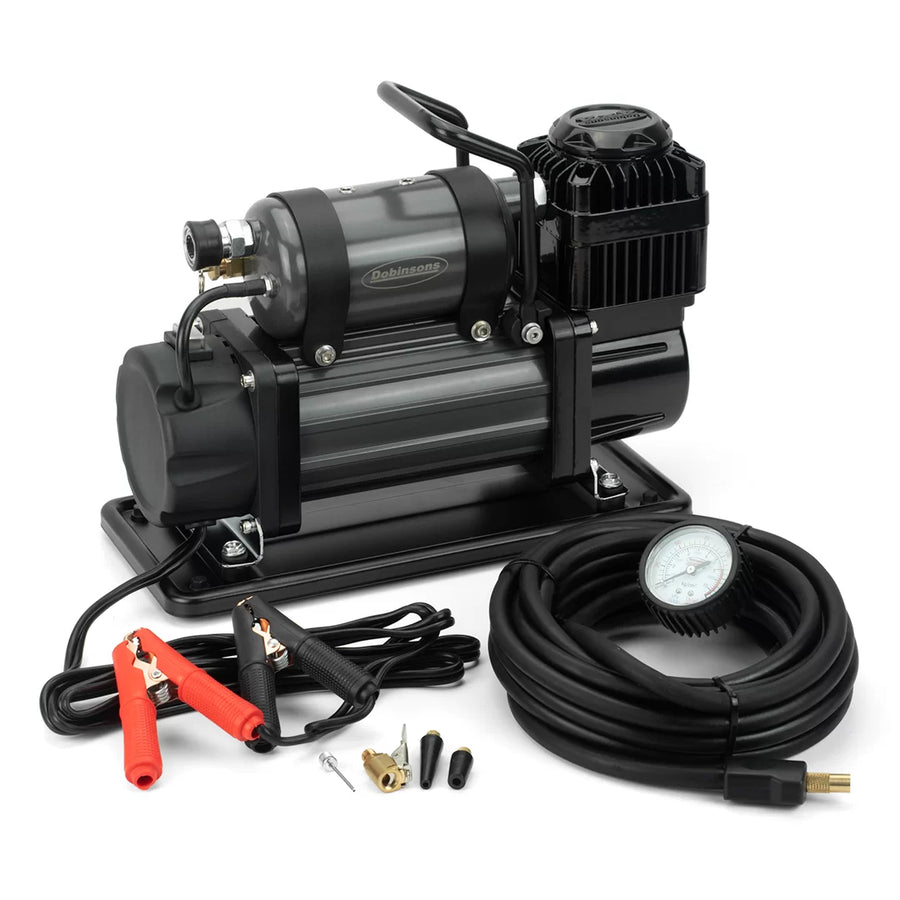

DOBINSONS AIR COMPRESSOR – ZENITH – AC80-3846

Features

• 125 max psi
• 170L/ minute Air Flow.
• Integrated Air Tank
• 2 x 1/8€? NPT Auxiliary fittings
• Carry Bag
• 6.5 m Rubber Hose
• Pressure Cut Off Switch
• Safety Release Valve
• Removable Base for Permanent Mounting
• Quick Release Tyre Chuck
• 6.00 CFM

Specifications

Nozzle Adapters
Pressure Gauge & Fuse
Voltage: 12 Volts DC
Motor Rating: 700 Watts
Max Current Draw: 60 Amps
Air Flow: 170L per minute
Maximum Pressure: 125 PSI
Cylinder Diameter: 60mm Full Metal
Duty Cycle: 40min at 40 psi at 20°C
Overload: 90 Amp
Air Hose: Rubber 6.5 metre
Air Tank Size: 0.19 Litres Approx
Auxiliary Tank Fittings: 1/8€? NPT
Pressure Switch Cut-Off: 125 PSI
Pressure Switch Cut-In: 90 PSI
Dimensions mm (L x H x W): 340 x 240 x 15
Part Number: AC80-3846

Â

Dobinsons latest high output Air Compressor has been designed and tested in Australia to combine high volume air-flow for quick tyre inflation as well as an integrated air tank, pressure cut-off switch and auxiliary ports for a variety of different applications.

Everything is contained in a neat and compact carry bag, making it easy to store or carry in your vehicle. Compressors that use a cigarette lighter plug will rarely get you the performance that you need, as most factory 12V cigarette outlets can€â™t handle the power draw required for an air compressor to give you true performance, the Dobinsons 4×4 Portable Air Compressor uses alligator clamps to connect directly to your 12V battery (leave vehicle running for maximum performance). This makes it easy to use on any vehicle, trailer, RV, motorcycle, or anywhere a 12V automotive battery can be reached.
