Description
The Ram rear long travel kit was developed to pair with our front suspension package. The kit was developed to achieve the same goal as the front suspension, drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This kit allows for 12.5” of travel when paired with the rear Dirt King spec shocks.
Specifications
- Wheel Travel: 12.5”
- Maximum Tire Size: 37”
- Maximum Back Spacing: 4.75”
- Minimum Rim Size: 17”
- Bypass Shock Size: Dirt King Spec Shocks

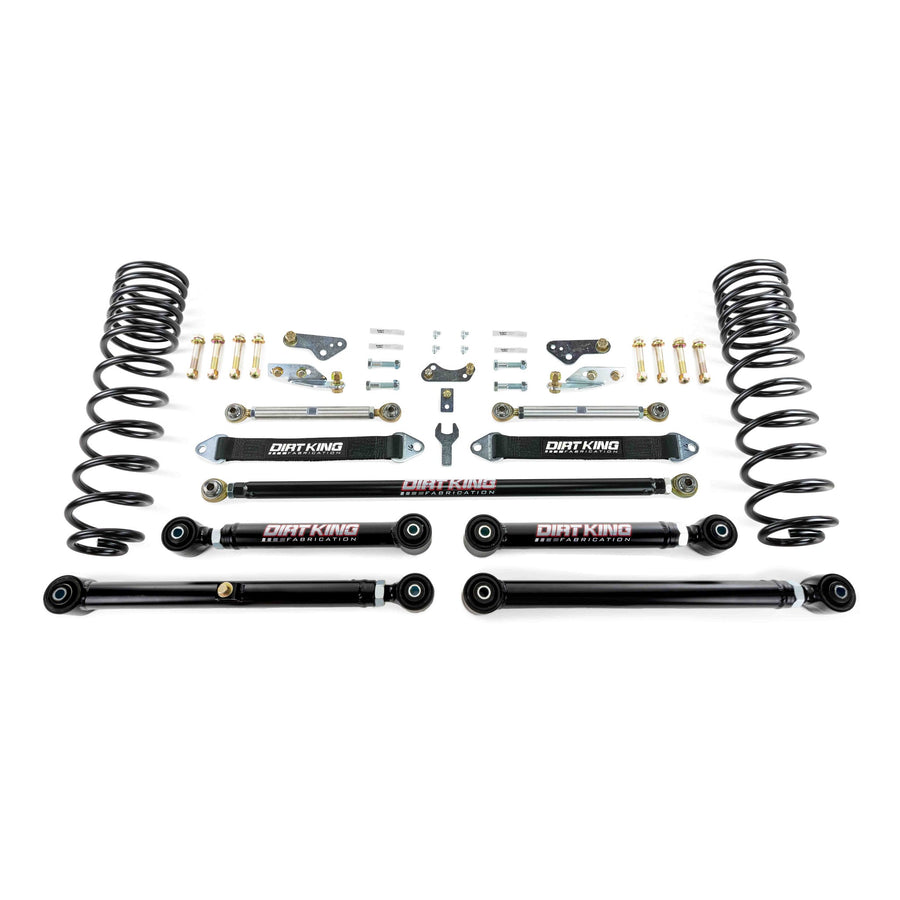

What's Included
- Adjustable upper links
- Adjustable lower links
- Adjustable track bar
- Extended sway bar links
- Extended length multi-rate springs
- 16” quad wrapped limit straps
- Bolt on limit strap mounts
- Brake line relocation tabs
- Grade 8 and 12.9 mounting hardware
Features
- Complete bolt on application
- Utilizes Probearing bearings
- Heavy duty .188” wall tubing for the links
- 4130 chromoly track bar
- 6061 aluminum sway bar links
- Zinc plated tabbing for corrosion resistance
- 17-4 stainless steel spacers
Compatibility
2009-2018 Ram 1500 2WD / 4WD
*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
