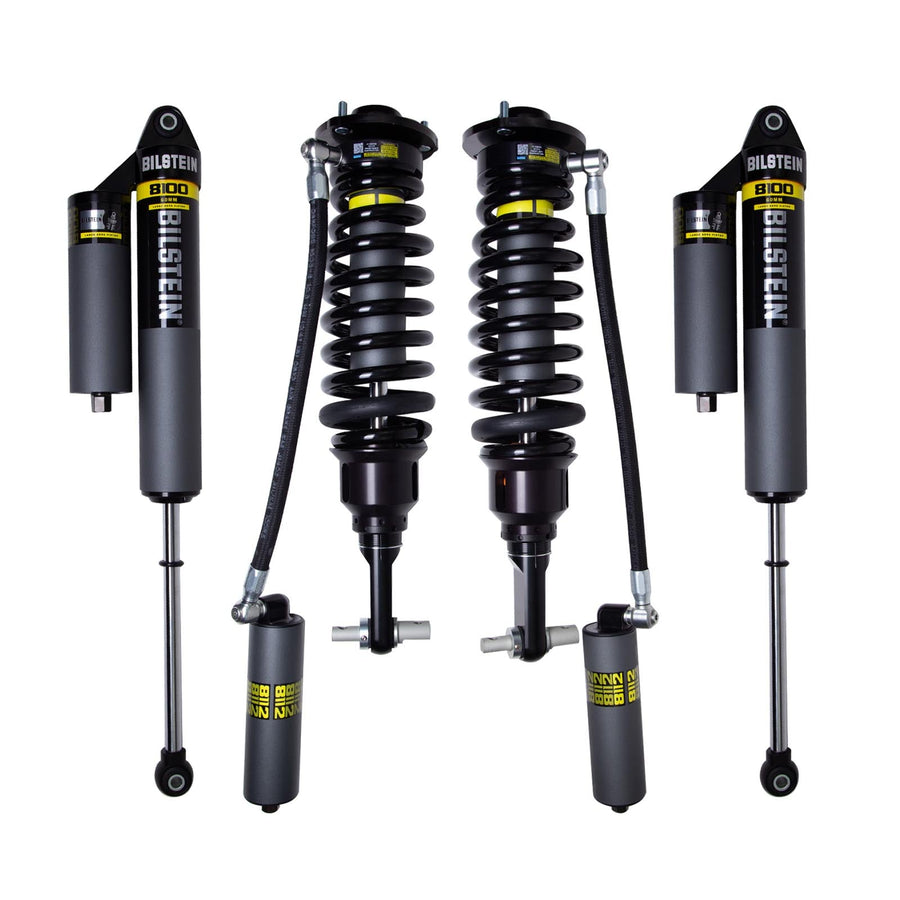

    • Bilstein B8 8112 ZoneControl CR Coilovers & Rear 8100 Shocks w/ Reservoir Set for 2015-2025 Ford F150 4WD w/1.6-2.5" lift for Ford F-150

    Bilstein B8 8112 ZoneControl CR Coilovers & Rear 8100 Shocks w/ Reservoir Set for 2015-2025 Ford F150 4WD w/1.6-2.5" lift

    Part Numbers & Details 2 Coilovers & 2 Rear Shocks A full set of front strut & spring assemblies with the matched rear pair of shocks. Bilstein 2 Year Warranty...
    Regular Price $3,499.00
    Shipping calculated at checkout.
    Rear Shock Option: Standard 8100
    Lead times may apply based on the manufacturer's current queue.
    Return policy varies by manufacturer.
    Need help choosing? Give us a call at (303) 954-8836.
    Part Numbers & Details

    2 Coilovers & 2 Rear Shocks
    A full set of front strut & spring assemblies with the matched rear pair of shocks.

    Bilstein 2 Year Warranty
    Manufacturer Warranty protects against defects and premature failure.

    Lifts your vehicle 1.6-2.5" in the front
    Springs will lift the vehicle 1.6-2.5" in the front and up to 0.5" in the rear

    Excludes Raptor Models
    This will not fit a Raptor.

    Designed for 4WD vehicles
    This product only works for 4WD vehicles.

    Without Continuously Controled Dampening
    Excludes electronic suspensions.

    Reservoir Mounts Included
    All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.

    ZoneControl CR
    Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.

    Bilstein twin-tube technology
    Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect.

    Compression (C)
    Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.

    Bilstein Gas-Pressure Technology
    Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.
    Specifications
    Part Number Item Quantity
    25-316773 Shock Absorber 2
    41-326725 Strut & Spring 1
    41-326701 Strut & Spring 1
    25-326857 Rear DSA Shock 2
    Product Details

    Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Bilstein B8 8100 is a direct fit, large-bore solution for lifted trucks and SUVs. These shocks are constructed from aerospace quality billet components and utilize a 60MM internal diameter shock body for higher oil volume capacity that will control heat while traversing rough surfaces and long distances.
