Bolt on Swing Out / Toyota Tacoma / 3rd Gen / 2016-2023

DRT Fabrication products are built to order. In-stock items ship in 3 to 5 business days; made-to-order items have variable lead times. Contact us for current timing on your specific build.

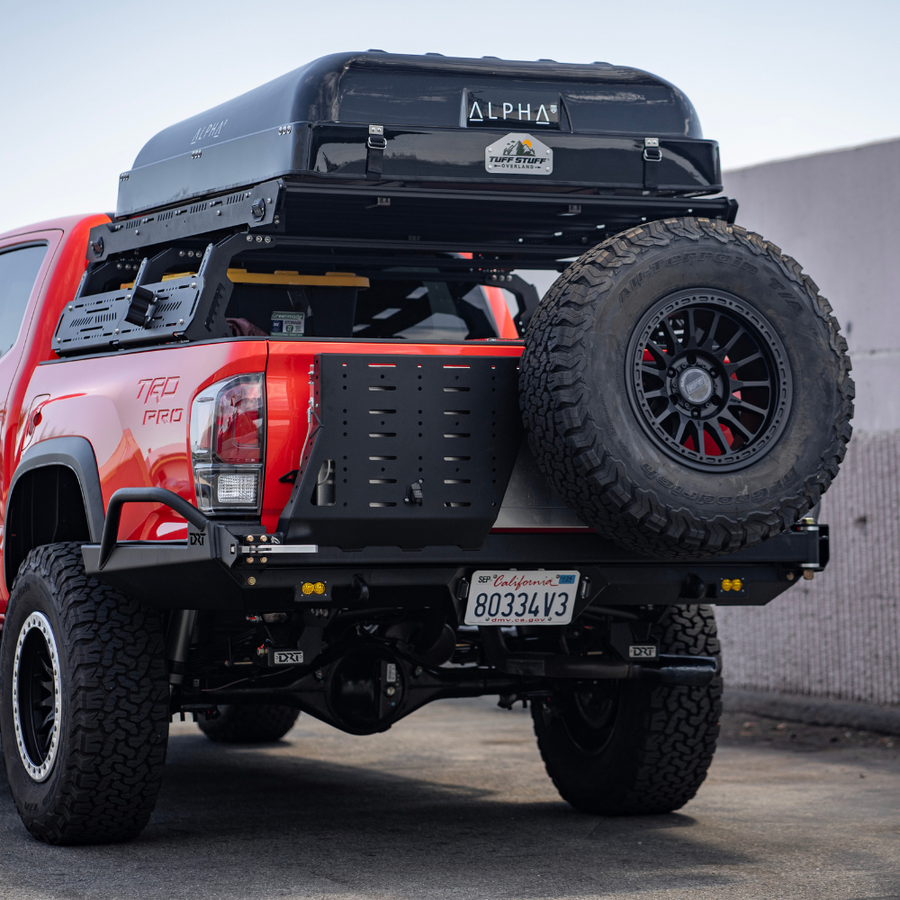

Bolt On Tire Carrier / Swing Out – Toyota Tacoma

Form, Function, and the DRT Standard

Introducing the DRT Fabrication Bolt On Tire Carrier / Swing Out, engineered to dramatically increase your Tacoma’s versatility. Designed with both form and function in mind, this swing-out provides a secure way to mount a spare tire along with essential gear such as a jack, fuel or water cans, rotopax, tools, and more. Every detail has been methodically designed.

Hinge Design

The swing-out hinge uses dual COM16 uniball bearings with aluminum misaligns and O-rings for durability, smooth operation, and resistance to water and debris. This ensures a quiet and long-lasting performance, no more dealing with cheap wheel bearings packed full of grease.

Strong, Secure Mounting

• Each carrier is attached to the bumper with five ⅜” Grade 8 bolts
• 100% bolt-on installation – no welding required
• Can be added to your DRT HC Rear Bumper at a later date
• Includes laser-cut templates for a straightforward install

Wedge-Style Latch System

• Uses CNC-machined black UHMW wedge pads to reduce wear and noise
• Comes standard with a lockable billet e3 Machine compression latch (black/raw combo)

Adjustable Spare Tire Mount

• Bolt-on mount included
• Angled for improved ground clearance
• Adjustable to fit a range of tire widths and wheel offsets (0 to -36 offset)
• Designed around a 35” tire (as shown in photos)

Built-In Fold-Down Table

When opened, the swing-out reveals a massive CNC bead-rolled aluminum table—perfect for cooking, organizing tools, or staging gear on the trail.

Billet Pull Pin with Multiple Positions

• Pull pin includes 2 locking positions:  90°, and 130° open
• Stainless steel slide plate prevents powder coat wear during repeated use
