Description

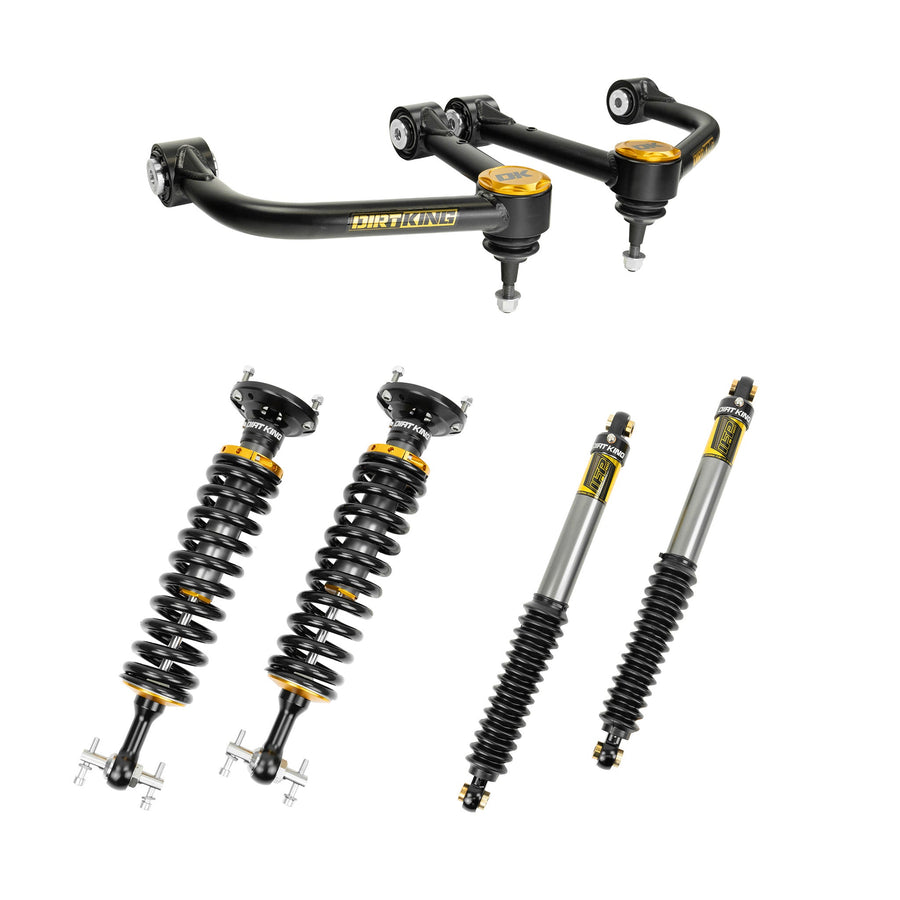

Transform your GM 1500 by eliminating front-end rake and achieving a leveled lift with the Dirt King MT Trail Runner Kit. This cost-effective solution includes Dirt King's 4130 Upper Control Arms, 2.0 IFP Front Coilovers, and 2.0 IFP Rear Shocks—all expertly tuned for superior comfort during everyday driving and on rugged trails. It's the perfect choice for those looking to enhance their vehicle's appearance and ride quality without the premium price tag of an extreme off-road package. For unmatched off-road control, adjustability, and high-speed desert capability, consider our MT PreRunner Kit.
Specifications
Front Lift Height
• Standard Models:
○ Out of the Box: Provides 3" of lift (levels vehicle).
○ Max Recommended Setting: Up to 3.5" of lift.
• Trail Boss / ZR2 / AT4 / AT4X Models:
○ Out of the Box: Provides 1.5" of lift.
○ Max Recommended Setting: 1.5" of lift (Do not exceed to maintain ride quality)
• Standard Models:
○ Out of the Box: Factory height is retained.
○ Maximum Recommended Lift Block: 1.5" (Lift blocks not included)
• Trail Boss / ZR2 / AT4 / AT4X Models:
○ Included: Package includes 1.5" rear lift blocks to replace the factory 2" blocks.
○ Benefit: Levels the vehicle and optimizes ride quality.
• Track Width: Stock
• Maximum Backspacing: 4.75"
• Minimum Rim Size: 17"
• Shock Bodies: 2" hard-anodized 6061 aluminum
• Shock Shafts: Induction-hardened 5/8"
What's Included
• Dirt King 4130 Chromoly Upper Control Arms
• Dirt King 2.0 IFP Front Coilovers
• Dirt King 2.0 IFP Rear Shocks
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions
• Trail Boss / ZR2 / AT4 / AT4X models include 1.5" rear lift blocks and u-bolts to replace the factory 2" blocks.
Features
• Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
• Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
• Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
• Durable Construction: The upper control arms are professionally MIG welded using 4130 chromoly tubing and finished with a black powder coat.
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
• Maintenance-Free Bushings: Probearing SilentSpin bushings offer a free-spinning inner sleeve without the need for grease.
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.
Instructions
Compatibility
2019-2025 Chevy Silverado 1500 2WD / 4WD
2019-2025 GMC Sierra 1500 2WD / 4WD
*Requires ARC delete for models equipped with ARC (Adaptive Ride Control also know as MagneRide)
*All Dirt King shocks are backed by a comprehensive one year warranty.
